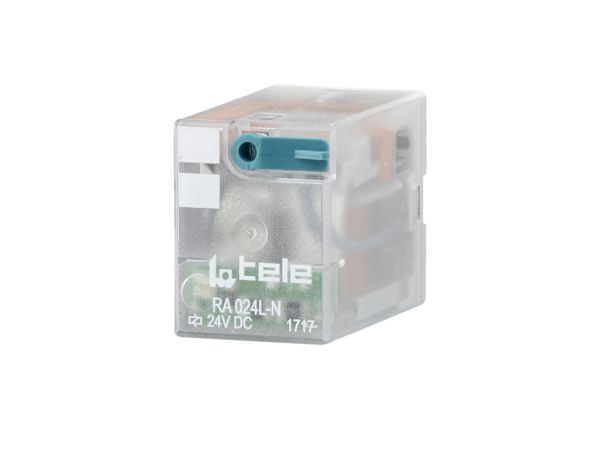

RA 024L-N
Easy-to-mount, rugged and durable switching and coupling relays for controlling small and smaller electrical loads in automation systems.
Read more
PACKING UNIT 10 PCS.
Miniature relays RA series
LED + mechanical position indicator
Manual override
Supply voltage 24VDC
2 changeover contacts (12A)
General Info
Short Description: Miniaturrelais, 24VDC, 2 Wechsler, LED
Item Number: 100622LD-N
EAN: 9008662015371
Main Category: Switching Relays
Series: RA
Type: RA 024L-N
Output: 2 changeover contacts
Dimensions: 21.2 x 27.5 x 35.6 mm
Ambient conditions and general specifications
Pollution degree: 2, pollution level can be increased by installation in suitable enclosures (according to IEC 60664-1)
Logistics
Minimum Quantity: 10
Tariff Number: 85364900
EAN: 9008662015371
Country of Origin: PL
Product Weight (g): 32
Available declarations / conformities
EAC: Yes
CE: Yes
UL: Open document
c(UL): Open document
REACH: Open document
WEEE: Open document
TSCA: Open document
RoHs: Open document
CMRT: Open document
CAD Files
STEP_RA_en.STEP: View documents
RM 024L-N
Easy-to-mount, rugged and durable switching and coupling relays for controlling small and smaller electrical loads in automation systems.
Read more
PACKING UNIT 10 PCS.

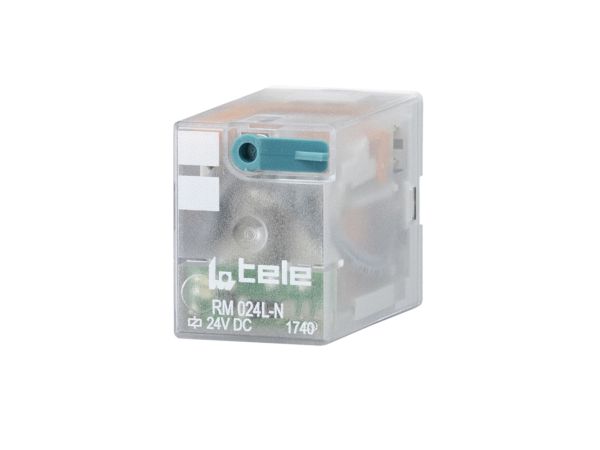

Miniature relays RM series
LED + mechanical position indicator
Manual override (lockable)
Supply voltage 24V DC
4 changeover contacts (6A)
General Info
Short Description: Miniature relay, 24VDC, 4 CO, LED
Item Number: 100603LD-N
EAN: 9008662015470
Main Category: Switching Relays
Series: RM
Type: RM 024L-N
Output: 4 changeover contacts
Dimensions: 21.2 x 27.5 x 35.6 mm
Ambient conditions and general specifications
Pollution degree: 2, pollution level can be increased by installation in suitable enclosures (according to IEC 60664-1)
Logistics
Minimum Quantity: 10
Tariff Number: 85364900
EAN: 9008662015470
Country of Origin: PL
Product Weight (g): 32
Available declarations / conformities
EAC: Yes
CE: Yes
UL: Open document
c(UL): Open document
REACH: Open document
WEEE: Open document
TSCA: Open document
RoHs: Open document
CMRT: Open document
RA 615L-N
Easy-to-mount, rugged and durable switching and coupling relays for controlling small and smaller electrical loads in automation systems.
Read more
PACKING UNIT 10 PCS.
Miniature relays RA series
LED + mechanical position indicator
Manual override
Supply voltage 115VAC

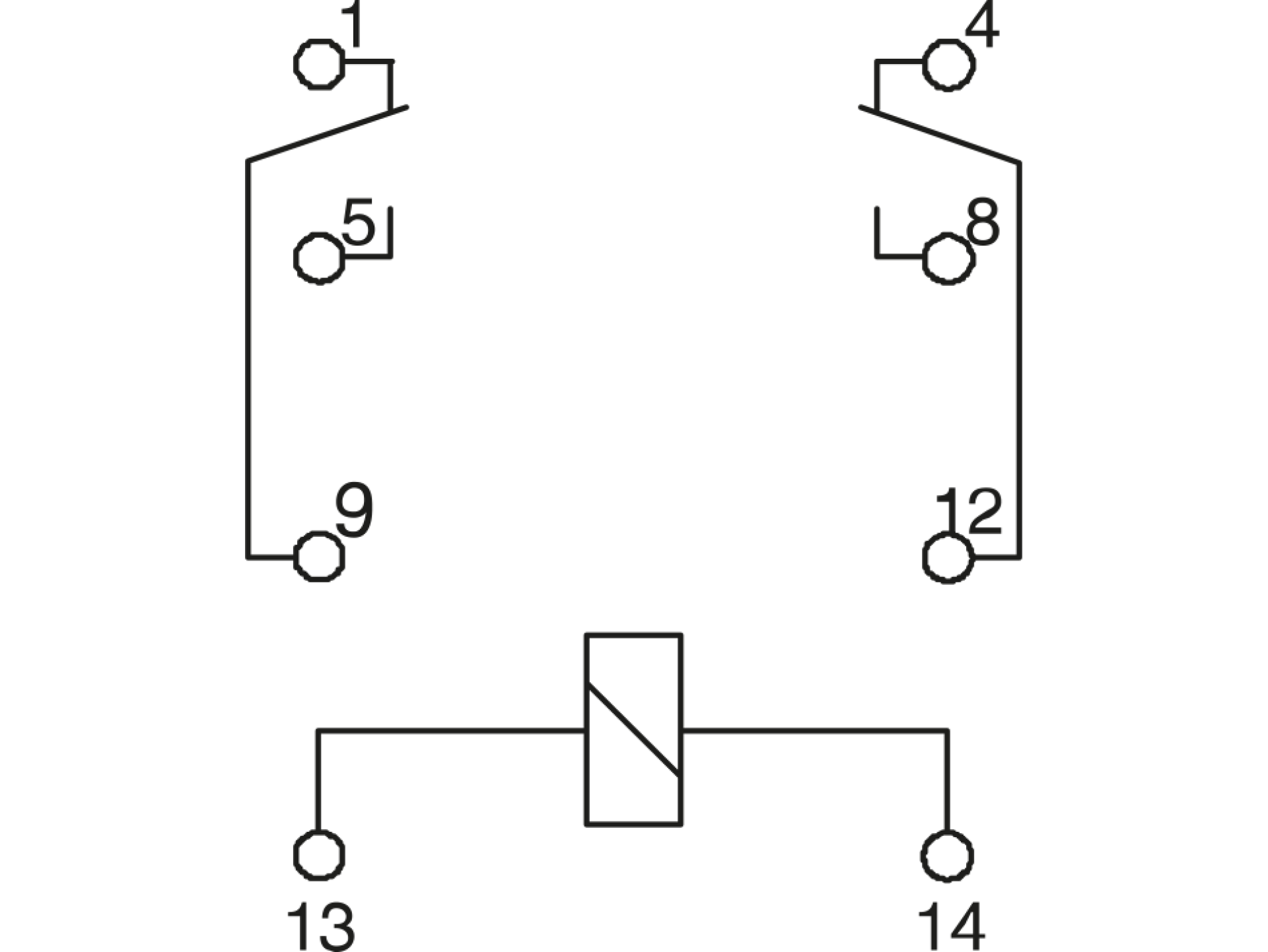

2 changeover contacts (12A)
General Info
Short Description: Miniaturrelais, 115VAC, 2 Wechsler, LED
Item Number: 100621LD-N
EAN: 9008662015401
Main Category: Switching Relays
Series: RA
Type: RA 615L-N
Output: 2 changeover contacts
Dimensions: 21.2 x 27.5 x 35.6 mm
Ambient conditions and general specifications
Pollution degree: 2, pollution level can be increased by installation in suitable enclosures (according to IEC 60664-1)
Logistics
Minimum Quantity: 10
Tariff Number: 85364900
EAN: 9008662015401
Country of Origin: PL
Product Weight (g): 32
Available declarations / conformities
EAC: Yes
CE: Yes
UL: Open document
c(UL): Open document
REACH: Open document
WEEE: Open document
TSCA: Open document
RoHs: Open document
CMRT: Open document
CAD Files
STEP_RA_en.STEP: View documents
RM 615L-N
Easy-to-mount, rugged and durable switching and coupling relays for controlling small and smaller electrical loads in automation systems.
Read more
PACKING UNIT 10 PCS.

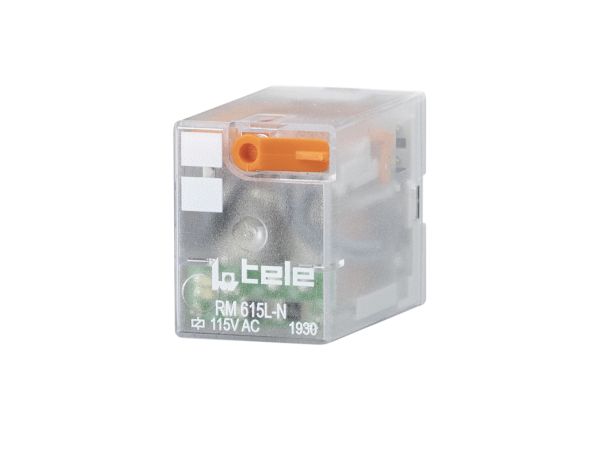

Miniature relays RM series
LED + Mechanical position indicator
Manual override (lockable)
Supply voltage 115VAC

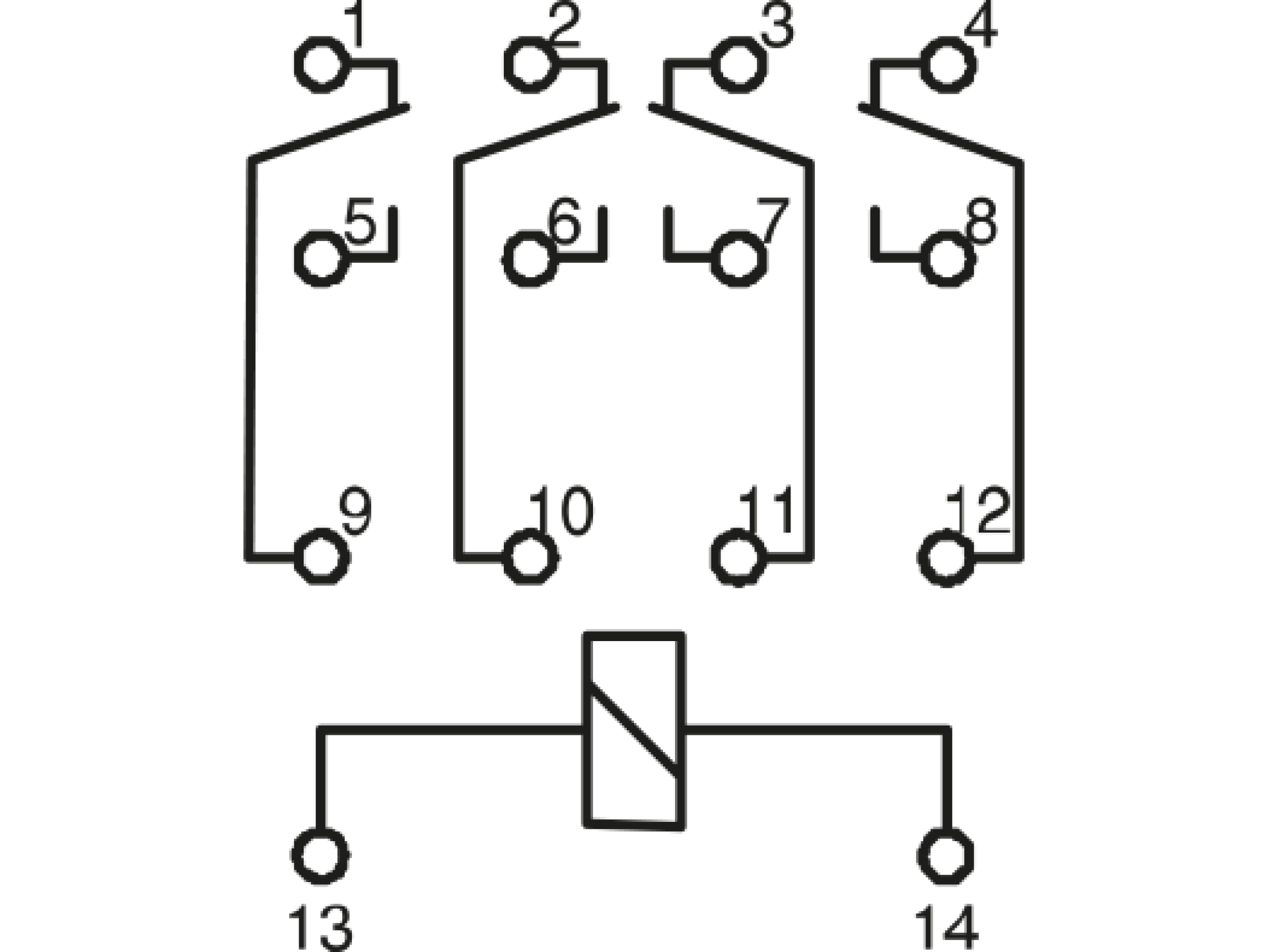

4 changeover contacts (6A)
General Info
Short Description: Miniature relay, 115VAC, 4 changeover contacts, LED
Item Number: 100618LD-N
EAN: 9008662015616
Main Category: Switching Relays
Series: RM
Type: RM 615L-N
Output: 4 changeover contacts
Dimensions: 21.2 x 27.5 x 35.6 mm
Ambient conditions and general specifications
Pollution degree: 2, pollution level can be increased by installation in suitable enclosures (according to IEC 60664-1)
Logistics
Minimum Quantity: 10
Tariff Number: 85364900
EAN: 9008662015616
Country of Origin: PL
Product Weight (g): 32
Available declarations / conformities
EAC: Yes
CE: Yes
UL: Open document
c(UL): Open document
REACH: Open document
WEEE: Open document
TSCA: Open document
RoHs: Open document
CMRT: Open document
RSS214
Easy-to-mount, rugged and durable switching and coupling relays for controlling small and smaller electrical loads in automation systems.
Read more
PACKING UNIT 10 PCS.

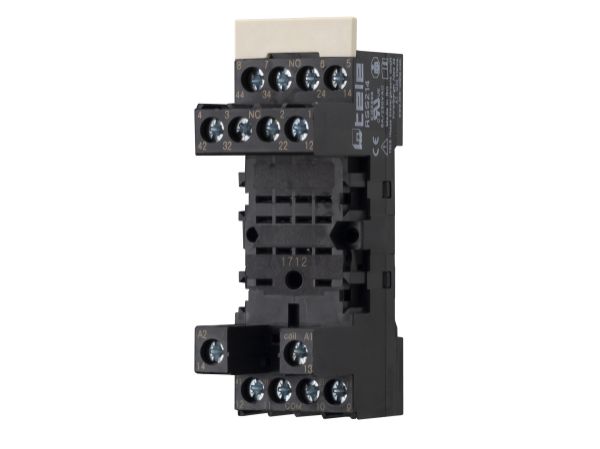

Socket
Accessories for RM series
Width 27mm
General Info
Short Description: Relaissockel Serie RM
Item Number: 180050
EAN: 9008662016071
Main Category: Switching Relays
Series: Sockel
Type: RSS214
Dimensions: 27 x 74 x 42 mm
Ambient conditions and general specifications
Pollution degree: 2, pollution level can be increased by installation in suitable enclosures (according to IEC 60664-1)
Logistics
Minimum Quantity: 1
Tariff Number: 85364900
EAN: 9008662016071
Country of Origin: AT
Product Weight (g): 57
Available declarations / conformities
CE: Yes
UL: Open document
c(UL): Open document
REACH: Open document
WEEE: Open document
TSCA: Open document
RoHs: Open document
CMRT: Open document

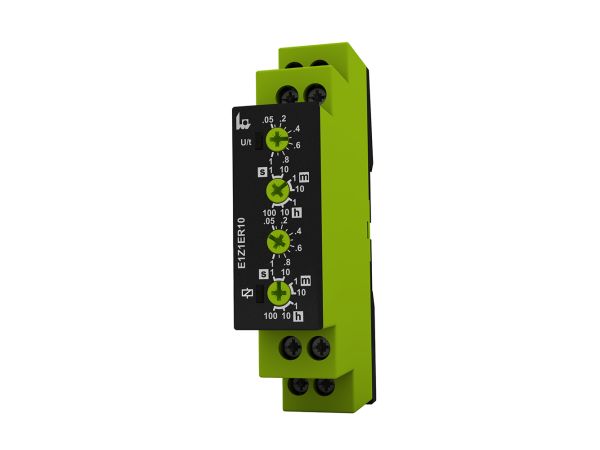

E1Z1ER10 24-240V AC/DC (VE10)
Precise and reliable switching and control in industrial and commercial applications.
Read more
PACKING UNIT 10 PCS.
Timer relay series ENYA
Multifunction
On-delay and off-delay

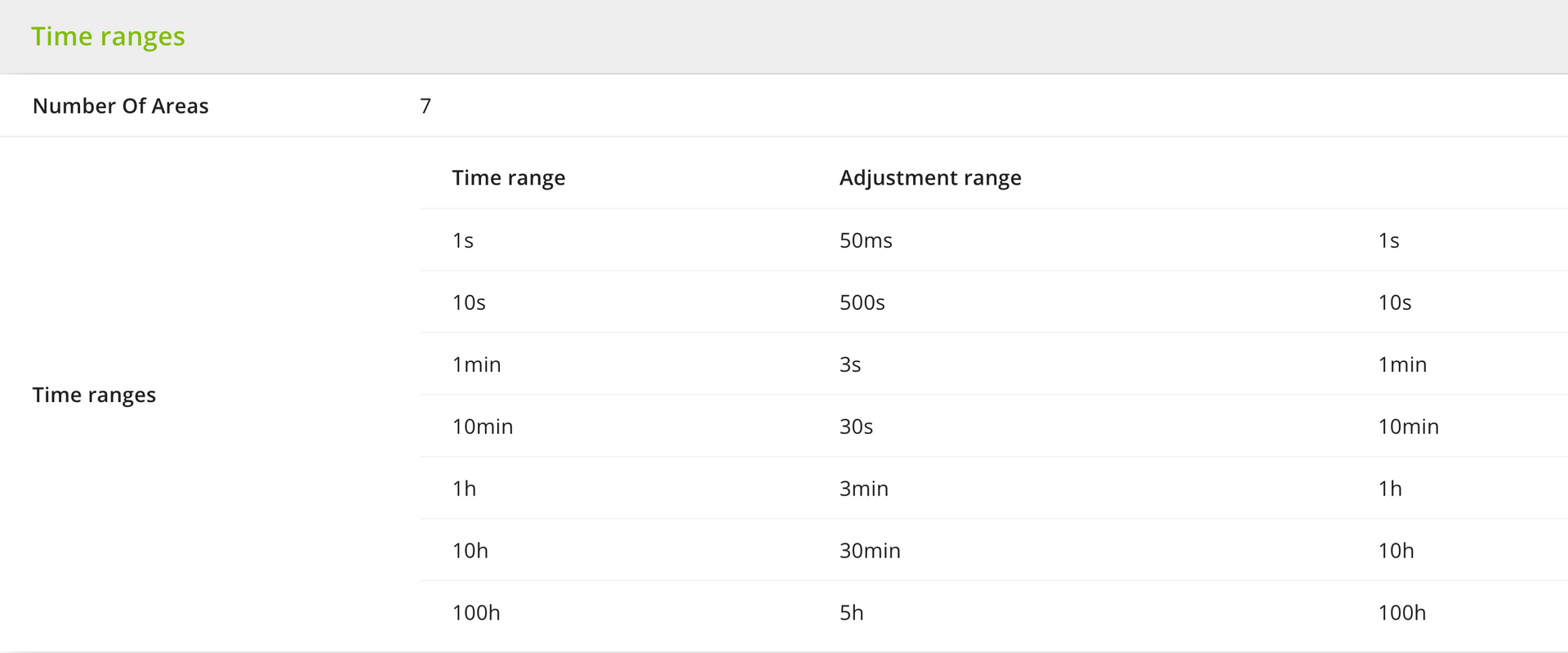

7 time ranges
Supply voltage: 24-240V AC/DC.
1 changeover contact
Width 17.5mm
Installation type
General Info
Short Description: Switch-on and switch-off delayed, 1 change-over contact, 24-240V AC/DC - PU 10
Item Number: 110208A
EAN: 9008662006270
Main Category: Timing Relays
Series: Enya
Type: E1Z1ER10 24-240V AC/DC (VE10)
Design: Installation design
Supply: 24-240V AC/DC
Output: 1 changeover contact

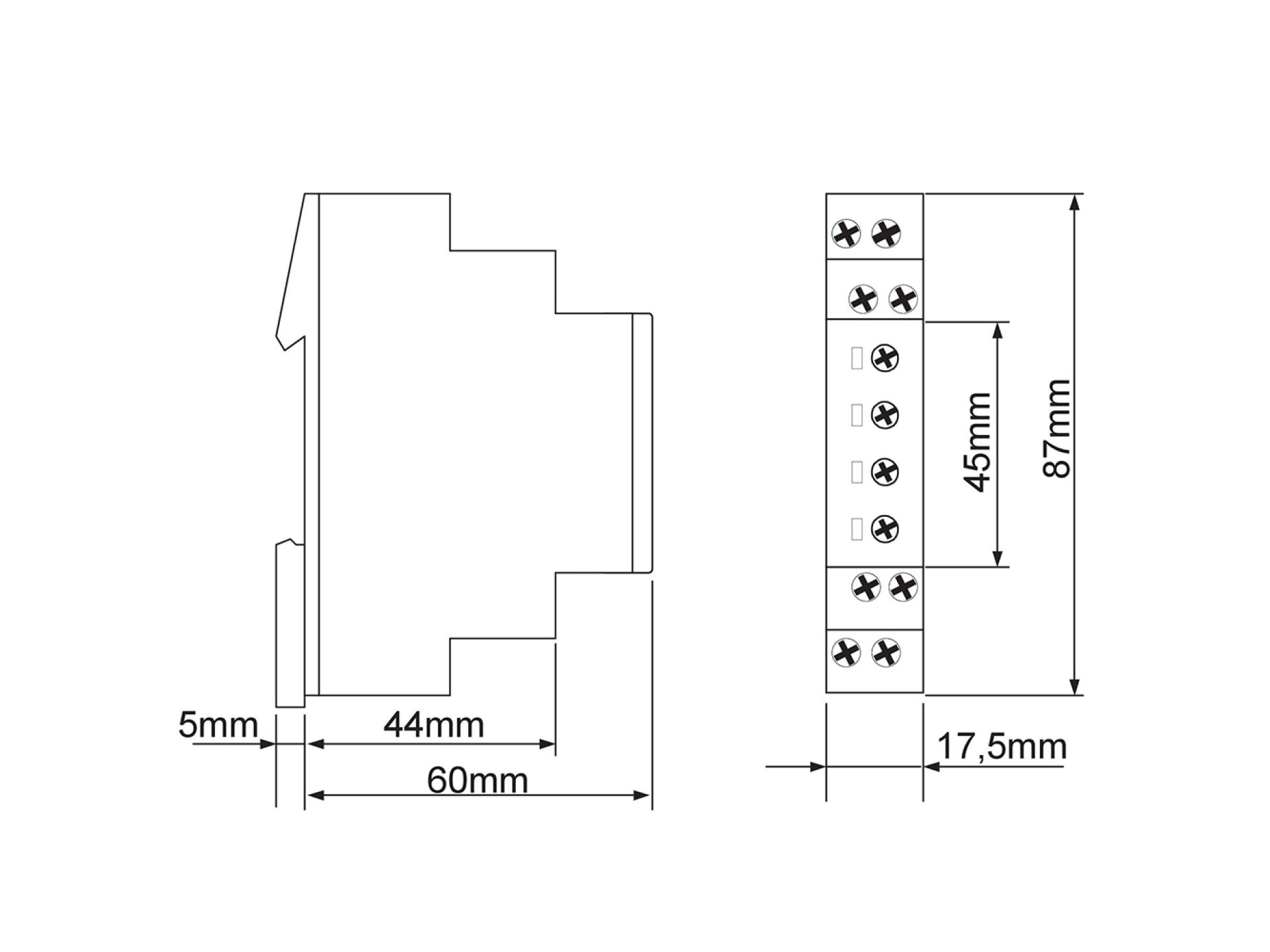

Dimensions: 17.5 x 87 x 65 mm
Ambient conditions and general specifications
Pollution degree: 2, pollution level can be increased by installation in suitable enclosures (according to IEC 60664-1)
Functions & measurands
Amount of functions: 1

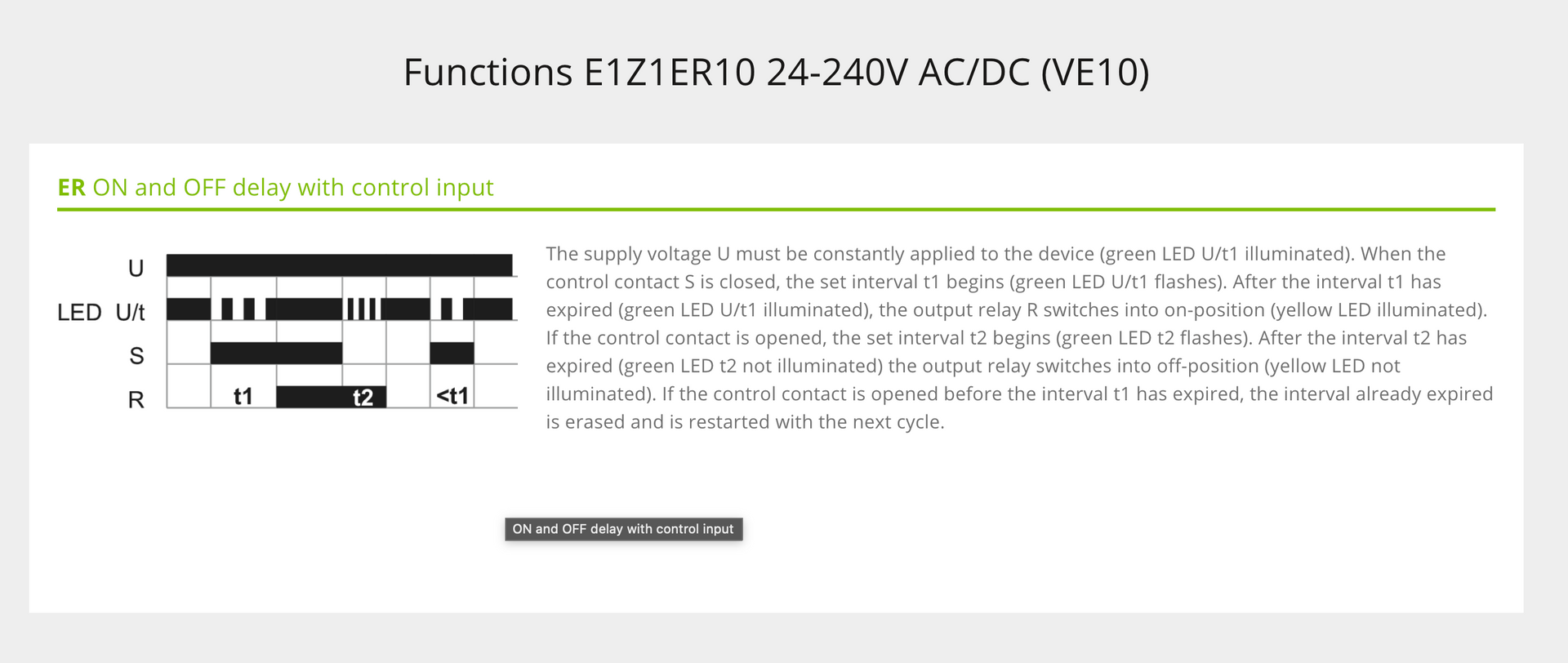

ON and OFF delay with control input check: Show diagram
Supply Circuit

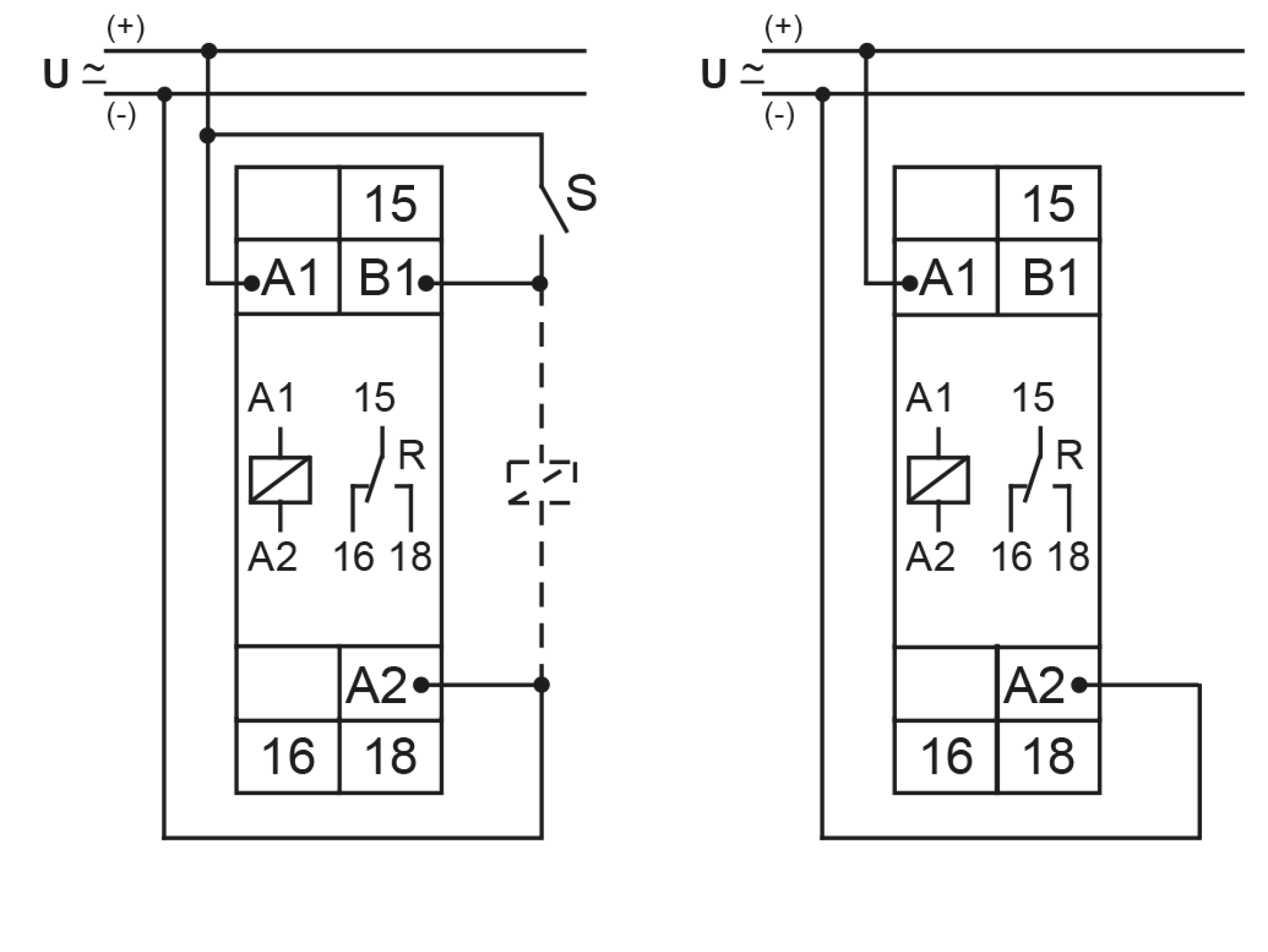

Terminals/connections: A1(+)-A2
Supply voltage d.c.: 24 … 240 V
Supply voltage tolerance d.c.: -15% ... +10%
Supply voltage a.c.: 24 … 240 V
Supply voltage tolerance a.c.: -15% ... +10%
Rated frequency [Hz]: a.c. 48 ... 63 Hz
Rated consumption a.c.: 1,5 W / 6 VA
Residual ripple: d.c. 10%
Drop-out voltage: >30% of the min. supply voltage
Overvoltage category: III (IEC 60664-1)
Rated surge voltage: 4 kV
Indicators
Supply/time lapse 1
Green LED U/t ON: Supply voltage applied
Supply/time lapse 2
Green LED U/t flashes slowly: Display of time elapsed t1
Supply/time lapse 3
Green LED U/t flashes quickly: Display of timeout t2
Relay state
Yellow LED ON/OFF: output relay position
Mechanical Design
Housing material: made of self-extinguishing plastic
Housing - protection degree: IP40

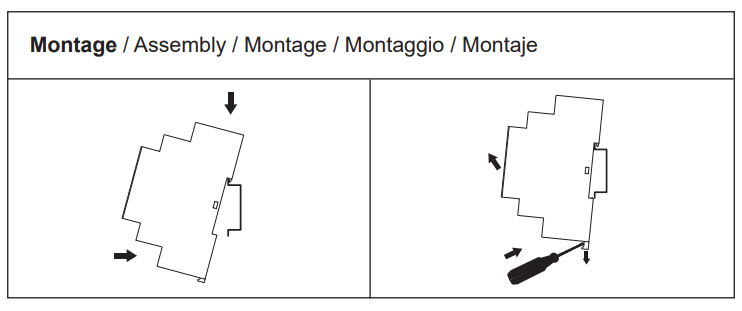

Mounting: top hat rail TH 35 7,5-15 according to IEC 60715:2017 / EN 60715:2017
Terminals/connections: Touch-proof clamping yoke terminals according to DGUV 3 (Screwdriver PZ1 required)
Terminals - protection degree: IP20
Mounting position: any
Max. Tightening Torque: 1 Nm
Terminal capacity: 1 x 0.5 to 2.5mm² with/without ferrule
1 x 4mm² without wire end ferrule
2 x 0.5 to 1.5mm² with/without end sleeves
2 x 2.5mm² flexible without ferrules
Output Circuit
Type: Relay
Contact 1: 1 changeover contacts
Terminals 1: 15-16-18
Rated voltage: 250 V a.c.
Fuse Protection: 8 A quick
Mechanical life: 20 x 10⁶ Switching cycles
Electrical life: 2 x 10⁵ Switching cycles (1000 VA resistive load)
Switching frequency: max. 6/min at 1000 VA resistive load (according to IEC 60947-5-1)
Rated surge voltage: 4 kV
Overvoltage category: III (nach IEC 60664-1)
Control Input
Control input: with potential
Terminals/connections: A1-B1
Loadable: Yes
Maximum line length: 10 m
Trigger level (sensitivity): Automatically adjusted to supply
Minimum control pulse length d.c.: 50 ms
Minimum control pulse length a.c.: 100 ms
Ambient conditions and general specifications
Storage temperature: -25 ... +70 °C
Transport temperature:-25 ... +70 °C
Pollution degree: 2, pollution level can be increased by installation in suitable enclosures (according to IEC 60664-1)
Accuracy
Base accuracy: ±1 % from full scale
Adjustment accuracy: <5 % from full scale
Repetition accuracy: <0.5 % or ±5 ms
Temperature influence: <=0.01 % / °C
Logistics
Minimum Quantity: 10
Tariff Number: 85364900
EAN: 9008662006270
Country of Origin: AT
Product Weight (g): 67
Available declarations / conformities
EAC: Yes
CE: Open document
REACH: Open document
WEEE: Open document
TSCA: Open document
RoHs: Open document
CMRT: Open document
c(UL)us: Open document
CAD Files
STEP_E1_en.STEP: Download file

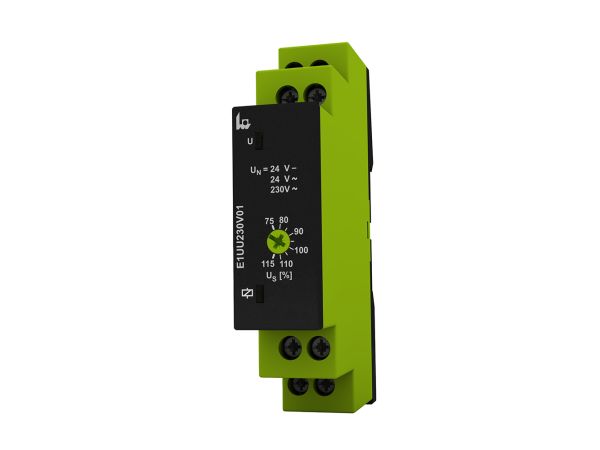

E1UU230V01
a.c./d.c. undervoltage monitoring in 1-phase mains with adjustable threshold and fixed hysteresis.
Read more
Monitoring relays series ENYA
Voltage monitoring 1-phase
Undervoltage monitoring
3 measuring ranges (24V DC, 24V AC, 230V AC)
Measuring voltage = supply voltage
1 changeover contact
width 17.5mm
Installation type
General Info
Short Description: Voltage monitoring 1-phase, 230V, Under, 1 changeover contact
Item Number: 1340102
EAN: 9008662005051
Main Category: Monitoring Relays
Series: Enya
Type: E1UU230V01
Design: Installation design
Supply: 230V ACOutput: 1 changeover contact
Dimensions: 17.5 x 87 x 65 mm
Ambient conditions and general specifications
Pollution degree: 2, pollution level can be increased by installation in suitable enclosures (according to IEC 60664-1)
Functions & measurands
Amount of functions: 1
ON and OFF delay with control input check: Show diagram
Supply Circuit

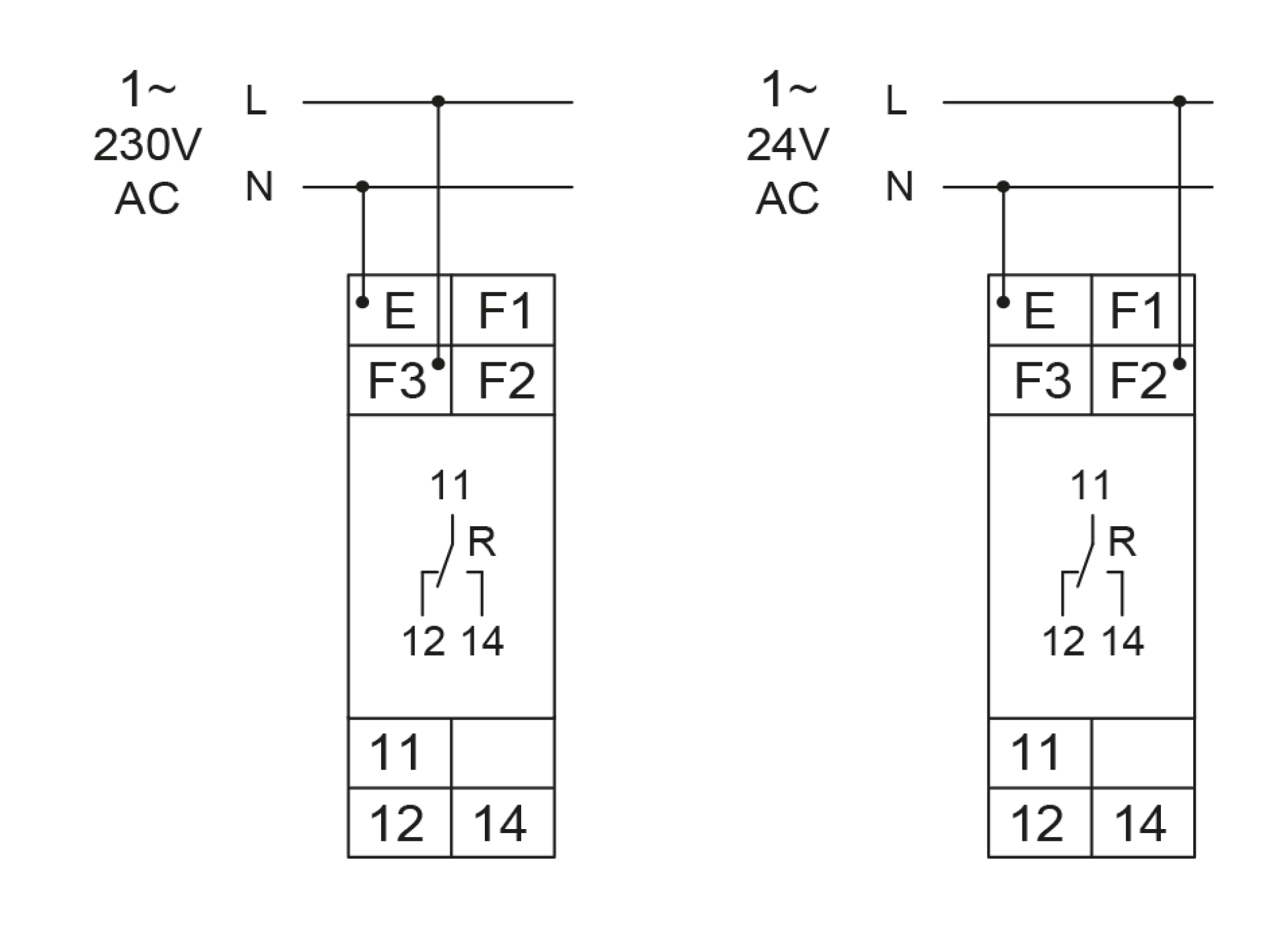

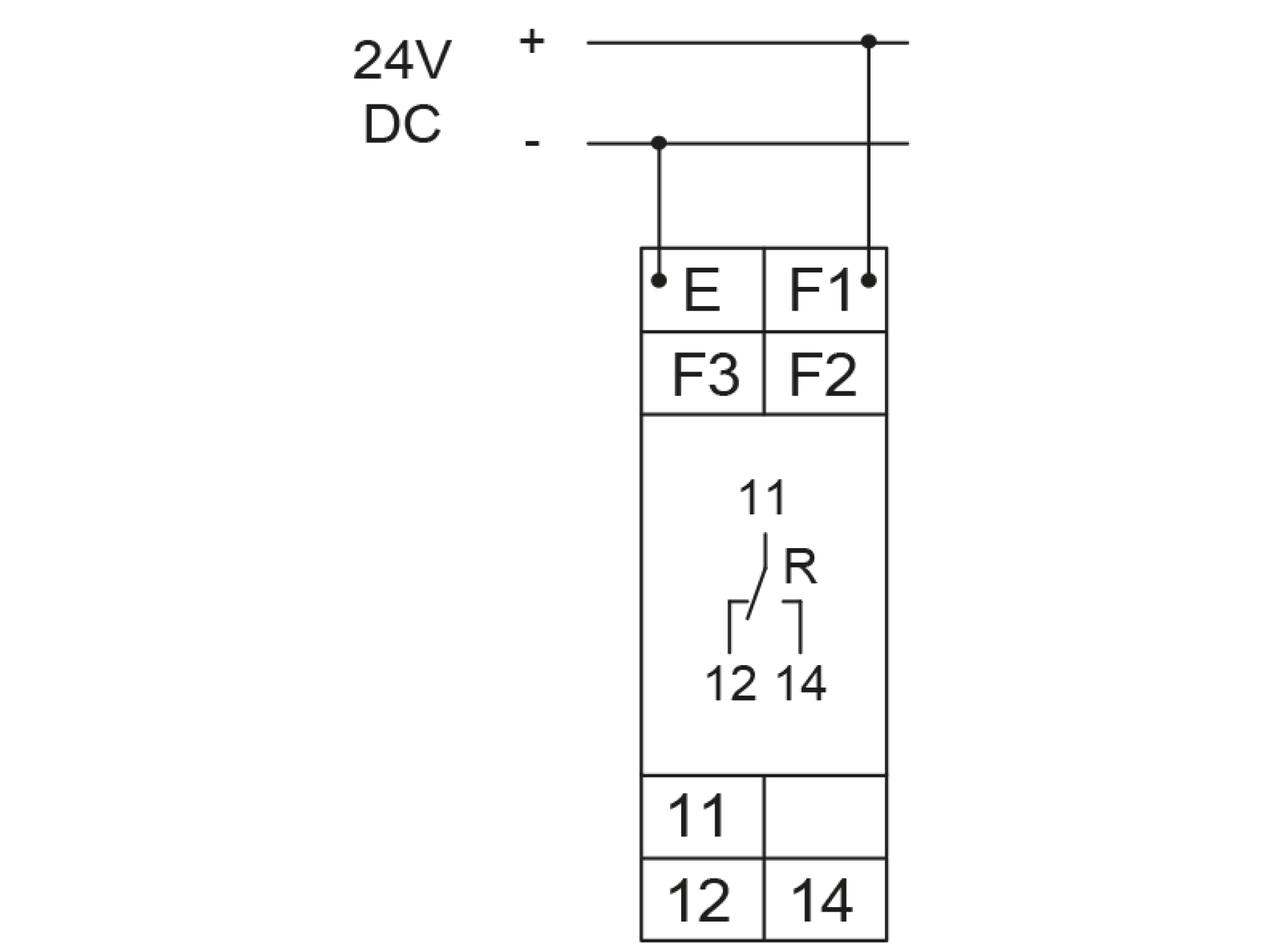

Terminals/connections: 230 V a.c.:E-F3; 24 V a.c.:E-F2; 24 V d.c.:E-F1(+)
Supply voltage tolerance d.c.: 0,6 W
Supply voltage tolerance a.c.: -25% ... +20% Un
Rated frequency [Hz]: aa.c. 48 ... 63 Hz
Rated consumption a.c.: 1,5 W / 6 VA
Rated consumption a.c.: 230 V a.c.: 0,6 W / 10 VA, 24 V a.c.: 0,8W / 1,3 VA
Duty Cycle: 100%
Recvovery Time: 500 ms
Drop-out voltage: >60% the supply voltage
Overvoltage category: III (IEC 60664-1)
Rated surge voltage: 4 kV
Indicators
Supply/time lapse 1: Green LED U ON: Supply voltage applied
Relay state: Yellow LED ON/OFF: output relay position
Mechanical Design
Housing material: made of self-extinguishing plastic
Housing - protection degree: IP40
Mounting: top hat rail TH 35 7,5-15 according to IEC 60715:2017 / EN 60715:2017
Terminals/connections: Touch-proof clamping yoke terminals according to DGUV 3 (Screwdriver PZ1 required)
Terminals - protection degree: IP20
Mounting position: any
Max. Tightening Torque: 1 Nm
Terminal capacity: 1 x 0.5 to 2.5mm² with/without ferrule
1 x 4mm² without wire end ferrule
2 x 0.5 to 1.5mm² with/without end sleeves
2 x 2.5mm² flexible without ferrules
Output Circuit
Type: Relay
Terminals 1: 11-12-14
Rated voltage: 250 V a.c.
Switch Capacity 1: 1250 VA (5 A/250 V a.c.)
Fuse Protection: 5 A quick
Mechanical life: 2015 x 10⁶ Switching cycles
Electrical life: 100 x 10³ Switching cycles (1000VA)
Switching frequency: max. 6/min at 1000VA (in accordance with IEC 60947-5-1)
Rated surge voltage: 4 kV
Overvoltage category: III (nach IEC 60664-1)
Control Input
Control input: with potential
Terminals/connections: A1-B1
Loadable: Yes
Maximum line length: 10 m
Trigger level (sensitivity): Automatically adjusted to supply
Minimum control pulse length d.c.: 50 ms
Minimum control pulse length a.c.: 100 ms
Ambient conditions and general specifications
Ambient temperature IEC: -25 ... +55°C
Storage temperature: -25 ... +70 °C
Transport temperature: -25 ... +70 °C
Relative humidity: 15% ... 85% (in accordance with IEC 60721-3-3 class 3K3)
Pollution degree: 2, pollution level can be increased by installation in suitable enclosures (according to IEC 60664-1)
Accuracy
Base accuracy: ≤5 %
Adjustment accuracy: ±5 %
Repetition accuracy: ≤2 %
Voltage influence: -
Temperature influence: ≤0.05 % / °C
Logistics
Minimum Quantity: 1
Tariff Number: 85364900
EAN: 9008662005051
Country of Origin: AT
Product Weight (g): 73
Available declarations / conformities
EAC: Yes
CE: Open document
REACH: Open document
WEEE: Open document
TSCA: Open document
RoHs: Open document
CMRT: Open document
c(UL)us: Open document
CAD Files
STEP_E1_en.STEP: Download file
Our Mission
To empower businesses with cutting-edge
electrical solutions that enhance performance, efficiency, and sustainability.
Our Vision
To be the leading provider of advanced automation and control solutions, setting the industry standard for quality, innovation, and customer service.
Our Goals
Deliver industry-leading automation and electrical solutions to enhance efficiency and reliability.
Continuously innovate to meet evolving electrical engineering and automation demands.
Maintain the highest quality standards with ABB-approved products and Raise and Lower type-tested panels.
